CONCEALED DOOR CLOSURE

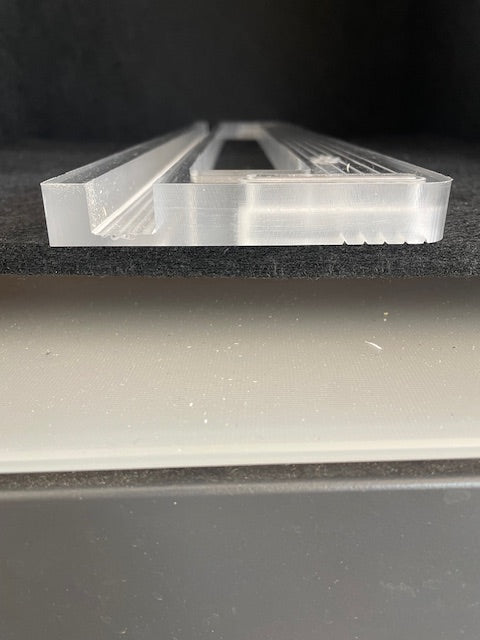

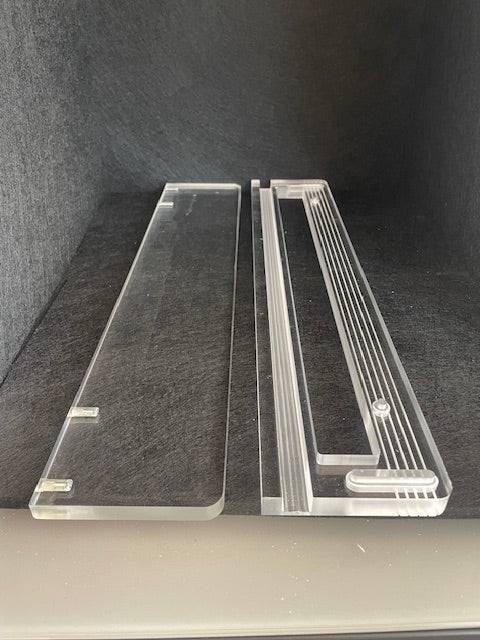

Concealed door closure jig to suit Lockwood 815 closure, it is made of 15mm perspex and a rebate cut out of the back to allow it to slide over the aluminium door rebate and needs to be clamped on and can be adjusted to suit, need a guide bushing 4mm wider than your bit

• size of faceplate 500mm x 100mm x 15mm

• side 500mm x 100mm x 12mm

• comes with 2 M5 socket bolts and 2spring washers
